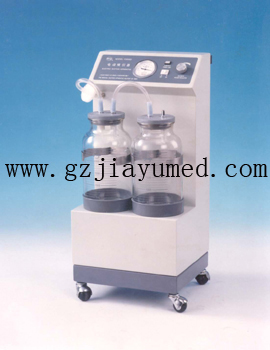

Used in various medical institutions to suck the patients airway secretions, operation when the suction in patients with exudate and flushing fluid.
One, performance characteristics:
The machine adopts oil-free vacuum pump, pumping speed, no oil pollution, pump without routine maintenance and repair.
The liquid storing bottle is directly inserted in the chassis of the tray, compact structure, convenient movement.
Large caliber liquid storage bottle, accompanied with seal ring stopper, user can conveniently open and tightly to facilitate removal of the bottle stopper, a waste liquid.
Overflow protection device can prevent the liquid into the pump body.
Using transparent PVC suction hose, draw the observation when the liquid in the tube; unique pipeline joint design, the pipeline connection is more convenient.
Equipped with the air filter can reduce the inhalation of the bacteria pollution of the surrounding environment.
A manual switch and a pedal switch is connected in parallel, arbitrary selection.
The stable work, low noise, long service life.
In two, the main technical parameters
Limit pressure value: = 0.09MPa ( 680mmHg )
Pumping speed: > 40L / min
The liquid storing bottle: 2500ml 2 group
Negative pressure regulating range: 0.02 ~ 0.09MPa ( 150 ~ 680mmHg )
Noise: < 60dB ( A )
Source: AC220V 50Hz
Input power: 250VA
Packing size: 41cm * 41cm * 77cm
Net weight: 19kg
