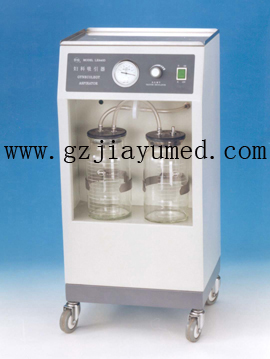

Gynecological suction apparatus for medical institutions to early pregnancy women performing induced abortion operation using.
One, product characteristics
Using a large flow of oil free lubrication piston pump as a negative pressure source, extraction rate is high, no oil pollution, can be removed from the pump body of the daily maintenance and management.
The box type structure, the top of the box is equipped with operation disk
Overflow protection device can prevent the liquid into the intermediate pipe
Pipeline is provided with a backflow prevention device ( check valve ), can choose to shutdown operation.
Suction pressure regulating valve rotating flexible, can be controlled to attract needed by vacuum negative pressure, and a table to display.
Pressure relief device mounted on the pedal switch, can be used to stop operation of the negative pressure by high profile low, can be used for the patient end of the negative pressure release.
Careful design of the pipeline control system, makes the clinical control stability, and no repeat settings, simple operation, convenient.
In two, the main technical parameters
Limit pressure value: = 0.08MPa ( 600mmHg )
Pumping speed: > 40L / min
The liquid storing bottle: 1500ml x 2
Negative pressure regulating range: 0.02 ~ 0.08MPa ( 150 ~ 600mmHg )
Noise: < 60dB ( A )
Source: AC 220V 50Hz
Input power: 250VA
Packing size: 48CM * 42cm * 89cm
Net weight: 25.5kg
