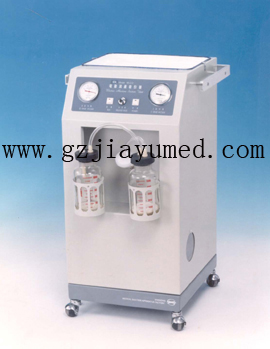

Electric abortion suction unit, used by medical staff in early pregnancy aid pregnant women implementation of artificial abortion suction operation, is ideal equipment for gynecology operation.
One, product characteristics
Novel abortion aspirator for good quality, low noise, large capacity, novel modeling, convenient operation.
Low noise design and timing shutdown, operation process without interference noise.
Suction pressure can be in the range of 0 ~ 0.09MPa ( 0 ~ 680mmHg ) through a foot switch to control.
Two stage pressure control, double vacuum gauge precise monitoring of gas suction pressure.
In two, the main technical parameters
Suction pump: rotary vane
Limit pressure value: = 0.09MPa ( 680mmHg )
Pumping speed: > 30L / min ( terminal pumping speed: > 15L / min )
The liquid storing bottle: 500ml x 2
Storage cylinders: 2500ml x 2
Noise:: = 55dB ( A )
Source: AC220V 50Hz
Input power: 280VA
Packing size: 54cm * 49cm * 86cm
Net weight: 33kg
