Infusion pump, injection pump

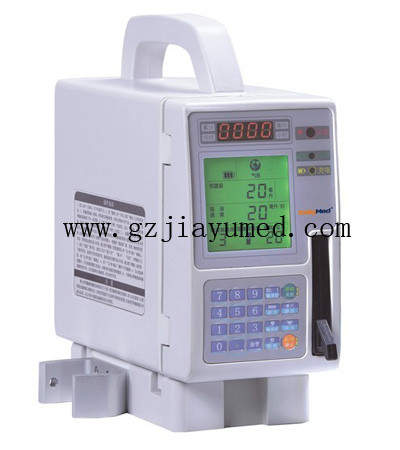

JY-A1 Liquid display infusion pump
|
Selectable Modes of Infusion
|
Large LED Display
|
|
Pumping Mechanism
|
Curvilinear peristaltic
|
|
IV Sets
|
Compatible with IV sets of any standard
|
|
Flow Rate
|
1~1300 ml/h
|
|
Increment
|
1-1000 ml/h in 0.1 ml/h increments; 1-9999 ml/h in 1 ml/h increments
|
|
Accuracy
|
Dedicated IV sets: ±3%; Standard IV sets: ±5%
|
|
Volume
|
1~9999 ml
|
|
Infusion Mode
|
ml/h, drop/min, time-based
|
|
KVO Rate
|
1-5 ml/h, adjustable
|
|
Alarms
|
Occlusion, air-in-line, door open, end program, low battery, unattended pump after startup
|
|
Additional Features
|
Real-time shift totals, on-screen hourly totals, automatic power switching, mute button, bolus, system malfunction
|
|
Air-in-Line Detection
|
Ultrasonic detector
|
|
Infusion Management System (nurse call)
|
Optional
|
|
Drop Sensor
|
Optional
|
|
Power Supply, AC
|
110/230 VAC, 50/60 Hz, 20 VA
|
|
Battery
|
9.6V±1.6V, Rechargeable
|
|
Battery Life
|
4 hours at the 30 ml/h
|
|
Working Temperature
|
10-40℃
|
|
Relative Humidity
|
30-75%
|
|
Atmospheric Pressure
|
700-1060 hpa
|
|
Size
|
233*146*269 mm
|
|
Weight
|
3 kg
|
|
Safety Classification
|
Class Ⅰ, type CF
|
