Infusion pump, injection pump

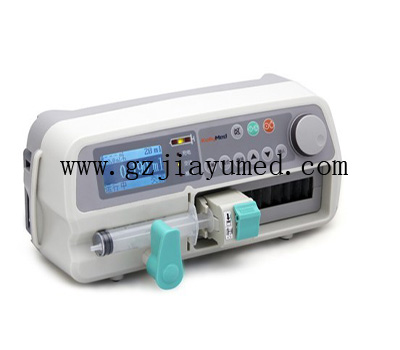

JY-A4 Injection pump
|
Selectable Infusion Modes
|
State-Of-The-Art Driving Mechanism
|
|
Syringe Size
|
10, 20, 30, 50 ml
|
|
Applicable Syringe
|
2 brands built-in (BD, B. Braun), 10 brands for user-defined
|
|
Volume
|
0.1~9999 ml
＜1000 ml in 0.1 ml increments
≥1000 mL in 1 ml increments
|
|
Flow Rate
|
Syringe 10 ml: 0.1~400 ml/h
Syringe 20 ml: 0.1~600 ml/h
Syringe 30 ml: 0.1~900 ml/h
Syringe 50 ml: 0.1~1300 ml/h
＜100 ml/h in 0.1 ml/h increments or decrements
≥100 ml/h in 1 ml/h increments or decrements
|
|
Bolus Rate
|
Syringe 10 ml: 400 ml/h
Syringe 20 ml: 600 ml/h
Syringe 30 ml: 900 ml/h
Syringe 50 ml: 1300 ml/h
|
|
Accuracy
|
±2%
|
|
Infusion Mode
|
Flow Rate: ml/min, ml/h
Time-based
Body Weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h
|
|
KVO Rate
|
0.1-1 ml/h in 0.1 ml/h increments or decrements, adjustable
|
|
Alarms
|
Occlusion, Syringe Drop Off, Near Empty, End Program, Low Pressure, End Battery, AC Power Off, Motor Malfunction, Unattended Pump, Syringe Moved Accidently, Pressure Sensor Error
|
|
Additional Features
|
Syringe Identification, Bolus, Real-time Shift Totals, Occlusion Pressure Release, Mute, Automatic Power Switching, Residue Reminder, System Memory
|
|
Occlusion Sensitivity
|
High: 0.02~0.06 Mpa
Medium: 0.06~0.09 Mpa
Low: 0.09~0.12 MPa
|
|
Power Supply, AC
|
110/230 VAC, 50/60 Hz, 20 VA
|
|
Battery
|
9.6V±1.6V, Rechargeable
|
|
Battery Life
|
5 hours at the 5 ml/h
|
|
Working Temperature
|
5-40℃
|
|
Relative Humidity
|
20-90%
|
|
Atmospheric Pressure
|
860-1060 hpa
|
|
Size
|
314*167*140 mm
|
|
Weight
|
2.5 kg
|
|
Safety Classification
|
Class Ⅱ, type CF
|
