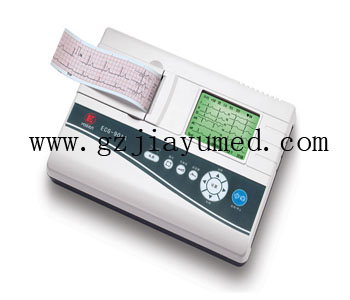

JY-C2 Single channel ECG machine

Model number: (Single channel)

Dimension:288mmX204mmX60mm

Packing:380mmX300mmX210mm

Weight:4.3kg(gross); 3.27kg(net)

Single channel with measurement report

Build in rechargeable Ni-MH battery

Chinese/English language

Simultaneous 12 leads

320X240 graphic LCD, 3.8 inch screen

Paper size: 50mmX20/30m

Built in RS232 interface (USB is optional)

8 Patients save/copy/communication

Specification

Items	specification
Lead	standard 12 leads
lead acquisition	synchronously 12 leads
Data acquisition	18bit/1000Hz
Record mode	Manual mode; Auto 1; Auto 2; Auto 3
Filter	AC, EMG，Drift Filter
CMRR	100dB(with AC filter)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	≥2.5MΩ
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage Tolerance	±500mV
Time constant	＞3.2s
Frequency response	0.05 ~150Hz
Noisy level	≤15μV_p-p
Sensitivity valve	≤20μV
Inter-Channel Interference	≤0.5mm
Paper speed	25、50mm/s(±3％)
Sensitivity	AUTO，2.5，5，10，20mm/mV
Recording mode	Thermal Array printing
Paper specification	50mmx20m，roll
LCD display	320x240 graphic LCD，display status&waveform.
Safety classification	IEC60601-1 class I, type CF
Power supply	AC ： 110V/220V/85~265V，50/60Hz±1Hz；30VA
Power supply	DC ：12V(1500mAh) rechargeable Ni-MH battery
Fuse	AC extend T500mA/125V ￠5x20mm AC extend T250mA/250V ￠5x20mm AC extend T2.0A/250V ￠5x20mm
