Operation lamp
JY-A30 Cold light four hole operation shadowless lamp

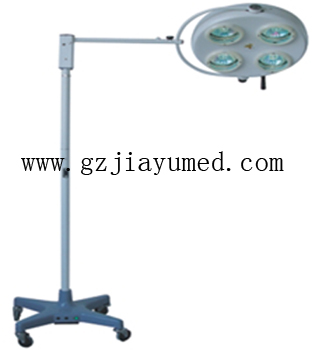

YD01-4 Cold Light Operating Lamp (on stand)
Type YD01 Series standing cold light operating lamp (hereinafter called shadowless lamp for short)is intended to serve as a illiminating device for medical observation and operation in hygienic & medical units. Due to its reasonable comfiguration, maneuverable featureand soft light, this shadowless lamp may be used as auxiliary illumination for major operation tr as sole illumination for minor operation.
Type YD01 Series standing cold light operating lamp (hereinafter called shadowless lamp for short)is intended to serve as a illiminating device for medical observation and operation in hygienic & medical units. Due to its reasonable comfiguration, maneuverable featureand soft light, this shadowless lamp may be used as auxiliary illumination for major operation tr as sole illumination for minor operation.
Technical Data:
1.llluminance: --------------------- ≥40000Lux,
2.Color temperature: --------------- 4000±500K
3.power supply voltage: ------------ ～220V/50-60Hz(110V/60Hz custom-made)
4.Rated Voltage of Bulb: ----------- 24V
5.Rated Power of Bulb: ------------- 25W
6.Input Power:---------------------- 120VA
7.Spot diameter:-------------------- 500MM
8.Bulb:----------------------------- cold light source
1.llluminance: --------------------- ≥40000Lux,
2.Color temperature: --------------- 4000±500K
3.power supply voltage: ------------ ～220V/50-60Hz(110V/60Hz custom-made)
4.Rated Voltage of Bulb: ----------- 24V
5.Rated Power of Bulb: ------------- 25W
6.Input Power:---------------------- 120VA
7.Spot diameter:-------------------- 500MM
8.Bulb:----------------------------- cold light source
