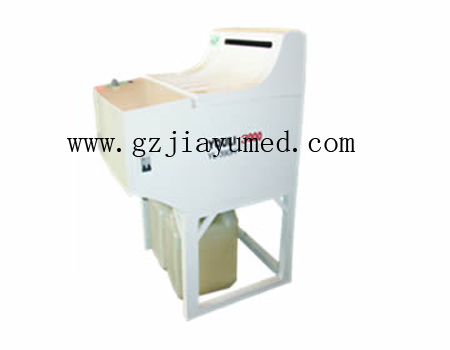

Bracket type medical washing machine ( washing machine, medical washing machine ) performance and specifications
Project ( performance, model) for supporting medical apparatus medical film washing machine ( washing machine, medical washing machine )
Maximum flushing maximum width of inches (14 "x 17" ), the smallest inches ( 4" x 4" )
Washing film varieties X ray, CT, MRT and other medical film
Every hour the flushing quantity development time of 20 seconds: 14 x 17 inch 93
Developing time 20S-90S continuously adjustable
The liquid temperature 24 to 36 DEG C. continuously adjustable
The capacity of the liquor Development: 6 L: 6 L fixing
Water consumption of about 3-4 L / min
The power of AC220V / 50HZ / 60HZ 3KW
Volume 940mm x 630mm x 1020mm ( long width height )
Weight of about 60KG
Flushing procedure developing - washed - fixing - washed - drying
Liquid supplement method for automatic liquid / low automatic fluid infusion
