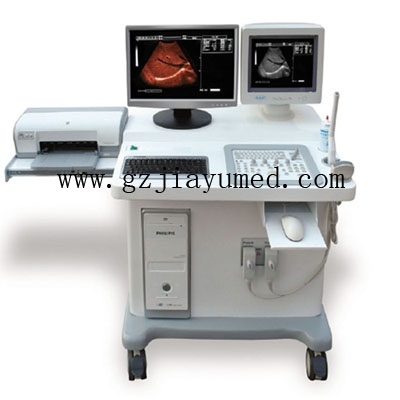

C series ultrasound machine
It is including :
one ultrasound scanner with 17" CRT monitor
One image workstation
One HP printer
4)one probe
Ultrasound scanner Specifications:
Standard probes: 3.5MHZ Convex;
Optional :6.5MHz ConvexTrans-vaginal;
7.5MHz (linear)
.Detecting depth:≥ 220mm;
.Display mode: B; B+B; B+M; M; 4B
.Gray Scale: 256;
.Image amplification: ×1.0; ×1.2; ×1.5; ×2.0;
.Local zoom: 2 times;
.Electronic focusing: 4 focuses combination randomly;
.Measurement: distance; circumference; area; heart rate; gestational week; fetal weight etc;
.Annotation: time; date; ID; age; sex; detecting depth; probe type; focus; frame correlation etc;
.English conversion;
.Cine-loop:341
.Image load/storage; 32
.Obstetric table: BPD; CRL; GS; FL; AC; HC; FW; EDD;
.Body marks: 40 types ;
2. Imaging workstation specification:
Mainboard :Gigabyte G31M
CPU:INTEL Celeron 430 1.8MHz
EMS memory:Kingston800 1G
Hard disk:Western Digital 160G
Monitor:19 LCD
Electromechanical:phillips+ GREATWALL
Keyboard:Lisheng
Mouse:Duble Swallow Opticalmouse
3. Printer:
HP ink jet printer
