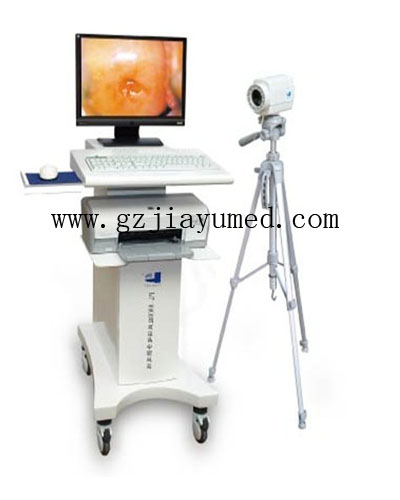

Production of Pinter's point
High resolution fast focus color digital imaging CCD, precision can reach 800000 pixels, 1-128 times image stepless adjustable, easy to realize image zoom in and out, providing high resolution image, more convenient operation, fast. Super close camera outside the 0.2 can be satisfied with the imaging.
DSP dynamic automatic gathering system 8 digital zoom, manual focus adjustment with.
1 / 4 inch color digital CCD F1.4, 4-64mm optical zoom lens, 16 times of simulation zoom.
Automatic brightness adjustment, and electronic anti vibration measures, around dynamic aggregation equilibrium.
Automatic balance adjustment and electronic image filtering technique.
Patent technology, ultra-high brightness more LED ring combination cold light source, no shadow, low heat, light life up to 100000 hours. Brightness uniformity, color bright, than conventional halogen light source brightness and color temperature is increased by more than 60%, more realistic tissue color reproduction.
, specially designed image spot filtration technology makes the image more clear, display of subcutaneous vascular morphology more easily identify the tiny details.
High resolution 19 " super large screen display, convenient operation, biopsy, teaching, training and diagnosis.
Opening type auxiliary diagnosis expert lexicon, easy to edit and maintain, convenient operation.
To provide a common clinical cases of atlas, the doctor is comparative diagnosis.
Improve the efficiency of the professional examination, diagnosis, Chinese windowsXP platform, integrates image acquisition, display, processing, analysis, and RCI evaluation of color graphic printing report in one.
With a set of image acquisition, processing, freezing, delete, report printing, storage functions of the Chinese operating system.
Support for the diagnostic results of Chinese report outputs and true color image output.
Every time continuous mining map 1-50 frame, can save 50000 patient mapping data.
And large capacity memory can store, picked up a few million patients calendar data.
The image may be a variety of ways to enhance the display, standard text information, measuring the length, circumference and area.
Quickly, a case of query and statistical functions.
- technical operation rules of lattice
Lens resolution 1 / 4," super HAD color CCD, 800000 pixels
Horizontal resolution of 470 lines, lens
Signal to noise ratio 50dB, lens
Lens focal distance, the standard 100 ~ 400mm 10 ~ 1000mm
Vision: 2.5mm20mm320mm
Depth of field: 15mm40mm 15mm-480mm.
, 0.15Lux lens minimum illumination
Zoom lens, 1 ~ 128 times
Lens image output interface, Video, S-video, PAL format
The focusing lens, quickly gathered automatically / manually gathered
AGC / white balance: automatic internal metering AWB
Light source, lens type LED ring P GaAs high brightness, long life light source group ( the average service life of 100000 hours)
John lens video output PAL format, VBS standard 1.0Vp-p
AE control of automatic / manual / brightness / EV / backlight compensation compensation
Photo / digital effects with a variety of image processing effect
Picture printing support ordinary copy paper, printing paper and photo paper color printing
Picture storage capacity of 1000000 and above
Every time continuous mining map number 1 ~ 50
The system power supply voltage AC220V + 10%
Rated power 500W system
The system working temperature of - 10 DEG C to 50 C.
The system of preservation temperature - 20 degrees to 60 degrees C.
30 ~ 80%RH system working humidity
Unique green design, the doctor can more clearly observe the subtle lesions.
